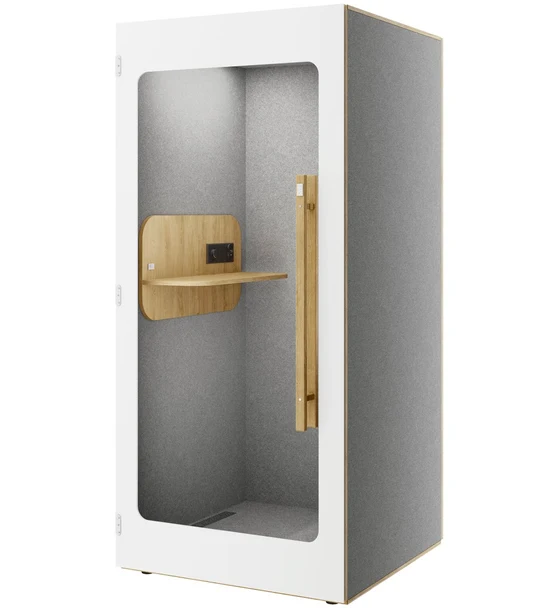

EU ProjectsHIDE H1 Single-person acoustic pod
A comfortable acoustic pod designed for one person. It does not take up much space and fits into any office interior.
It provides ideal conditions for phone calls or teleconferences.
It takes up little space, only about 1 m x 1 m
Provides a sense of privacy and confidentiality of conversations
Excellent for short phone calls, as well as longer video conferences/teleconferences

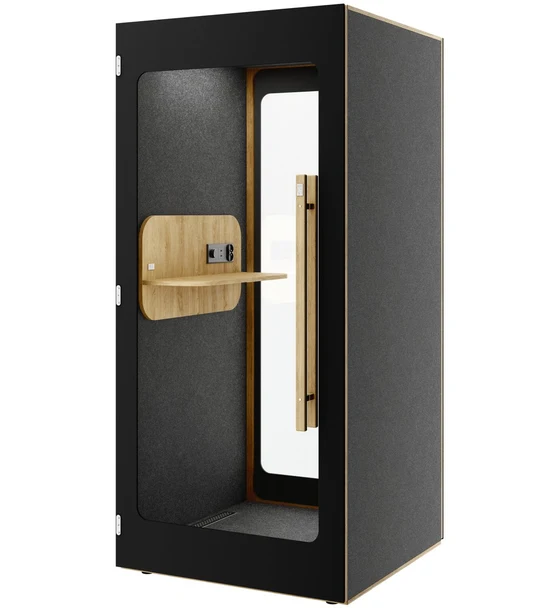

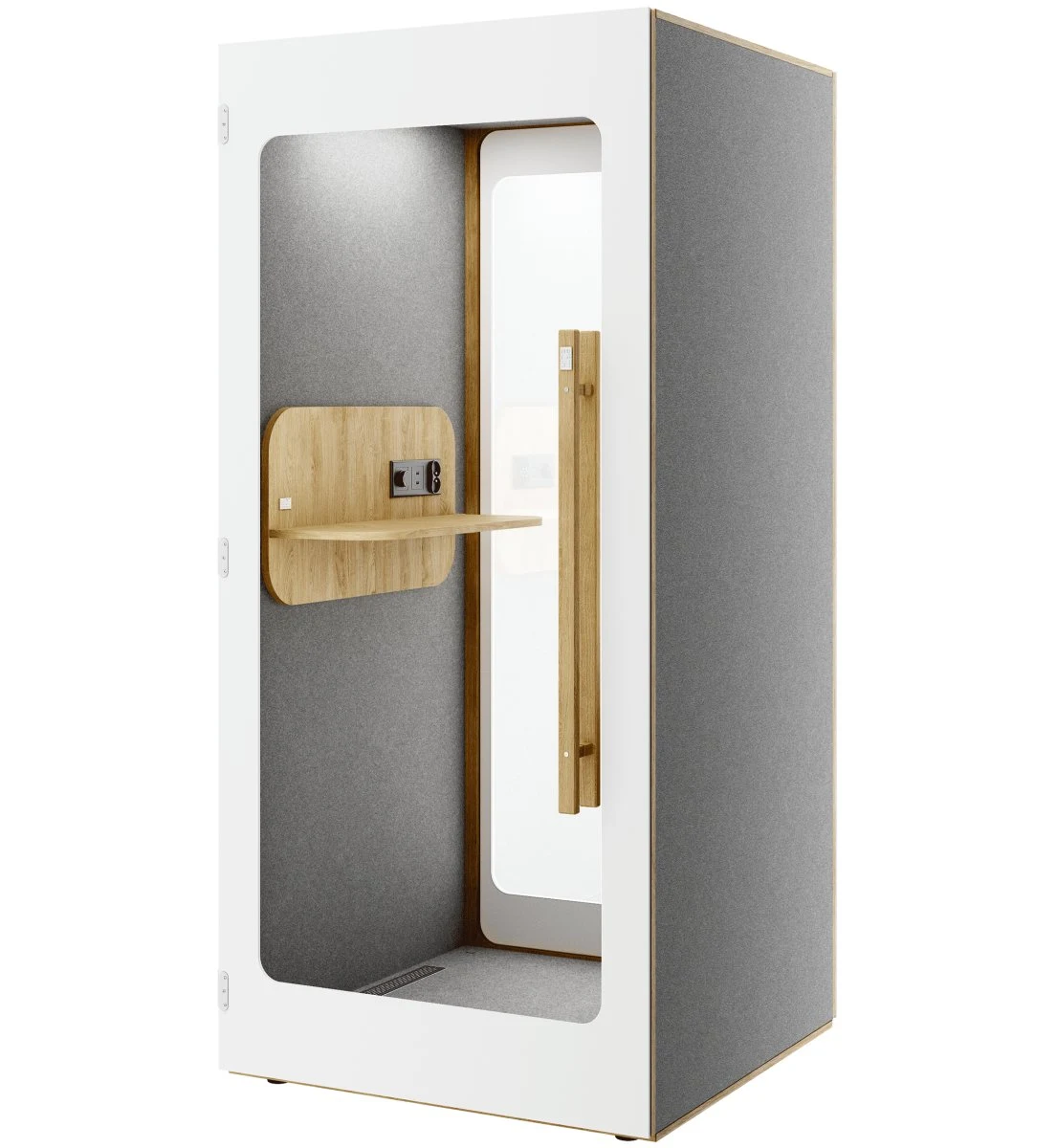

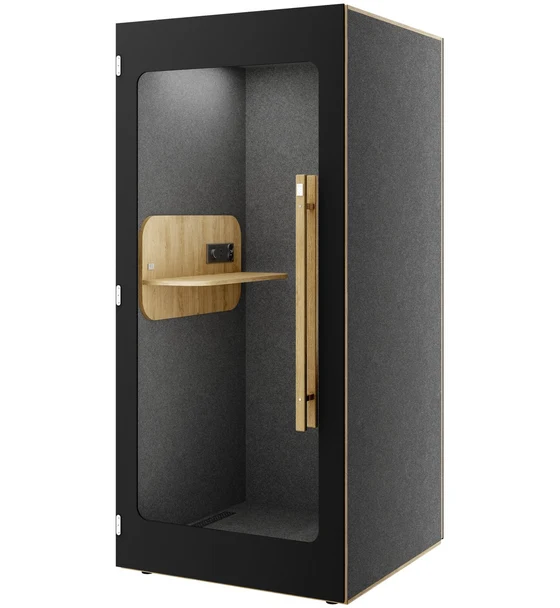

Available in 2 versions: with a solid or glazed back
Efficient ventilation system with adjustable ventilation power
2 color versions to choose from
Optimum soundproofing
2 back panel options: glazed or solid
Simple design = easy installation
Functional equipment
General information
| Dimensions | 220 x 100 x 106 cm (H x W x D) |
|---|---|
| Weight | 222 (full back) / 243 kg (glazed back) |
| Material on exterior and interior walls | 3 mm thick felt + plywood (outer ceiling) |
| Sound insulation | Class C (according to current standards) |
| Colors | dark / light version or 37 premium colors or oak plywood |
Equipment
| Ventilation | 4 x quiet fans with a total air flow of 495 m3/h (2 in the ceiling and 2 in the floor),automatically activated by a motion sensor, the possibility of adjusting the power of the supply using an intuitive touch panel |
|---|---|
| Shelf | Oak plywood shelf 80 x 28 cm mounted at a height of 110 cm |
| Lighting | LED lighting automatically activated on presence sensor with airflow power adjustable via an intuitive touch panel |
| Magnetic door | Doors made of 8 mm tempered glass with a neodymium magnetic latch; handle made of oak wood |
| Sockets | 2 x 230V electrical socket + 2 x USB sockets |

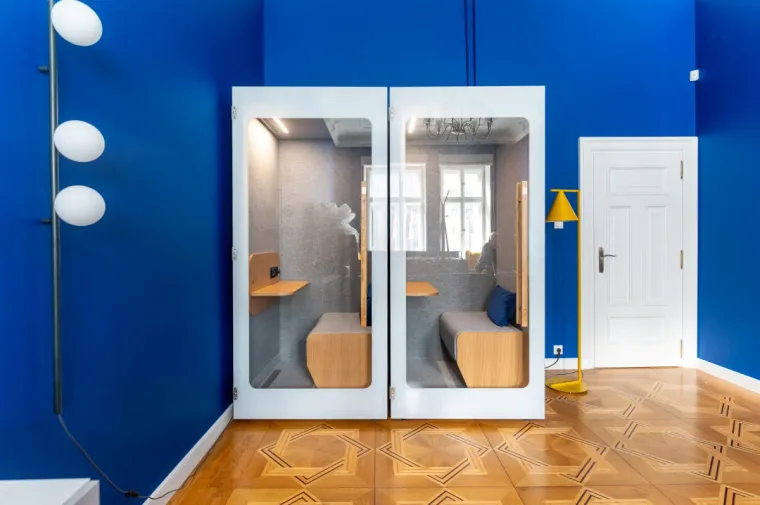

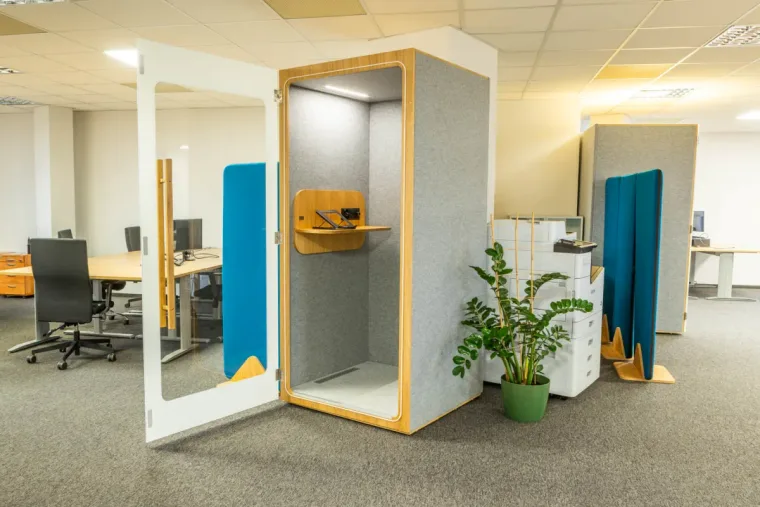

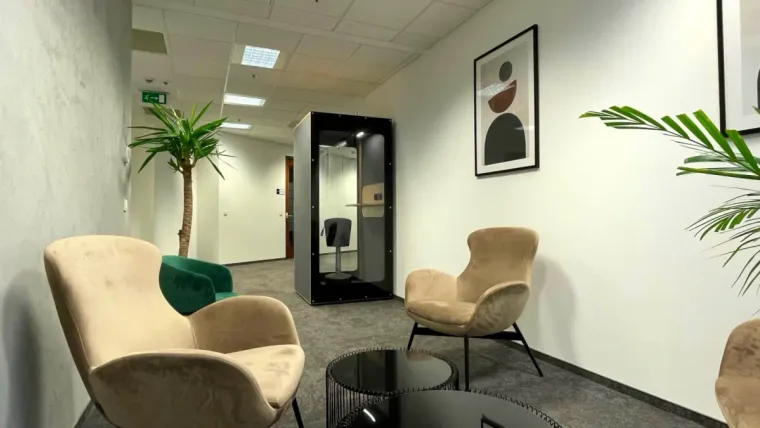

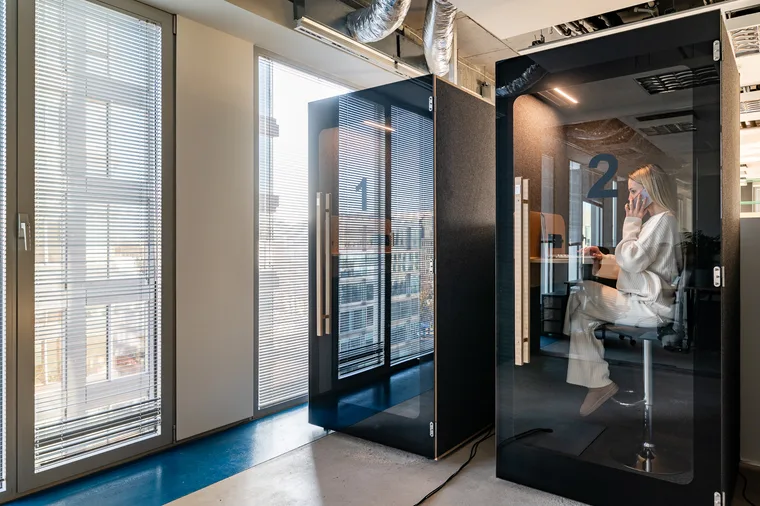

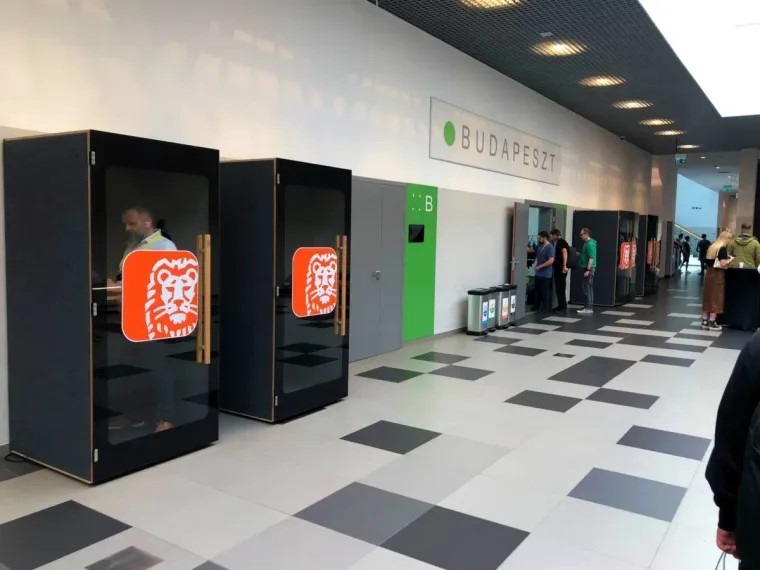

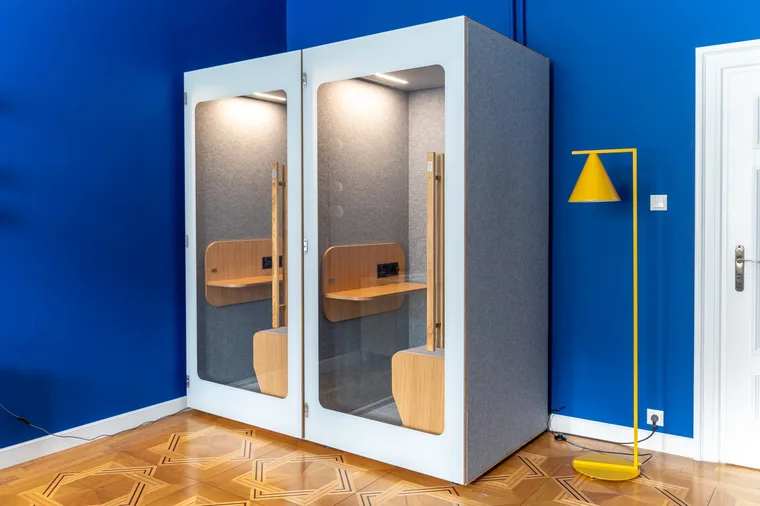

Example installations
Frequently asked questions
1What conditions must the room meet for installing the HIDE H1 acoustic pod?+
The room in which the HIDE H1 acoustic pod is to be installed should be at least 260 cm high, and there should be an electrical outlet within 4 m of the pod's location. The width of the room (alcove) where the HIDE H1 pod is to stand should allow free opening of the glass door (before ordering, check the H1 pod dimensions in the technical data sheet or in the Specifications tab).
2What is the lead time for the HIDE H1 acoustic pod?+
The lead time is up to 4 weeks from the confirmation of the order and payment of a deposit of 50% of the order value. In many cases, however, the order is ready for shipment much sooner.
3Will the HIDE H1 acoustic pod arrive on site in its entirety?+
The HIDE H1 acoustic pod will arrive on site in parts and will be assembled on site by the installation team.
4Can I install the HIDE H1 acoustic pod by myself?+
We recommend using our experienced installation team to ensure the pod is assembled correctly.
5How long does it take to install the HIDE H1 acoustic pod?+
Installation by our professional team takes approximately 1.5 hours.
6What makes up the basic equipment of the HIDE H1 acoustic pod?+
Every H1 pod comes standard with efficient ventilation, LED lighting with presence sensor, 2 x electrical outlets, 2 x USB sockets, a convenient shelf and an airflow control knob.
7What can I modify in the appearance of the HIDE H1 acoustic pod?+
The HIDE H1 pod is available as standard in 2 color versions: light and dark, but it can also be finished in natural wool felt available in 37 colors (an additionally paid option). Other optional extras include: a glazed rear wall, wheels installed in the floor, veneered panels (natural oak) on the outer side walls, additional sockets (e.g. RJ45), a monitor mount, etc. We are also open to other specific needs of our Clients.
8How much does the HIDE H1 acoustic pod cost?+
To receive a price list of HIDE acoustic pods, please send an email inquiry to: kontakt@hidebooth.com.
9Are HIDE H1 acoustic pods delivered throughout Europe?+
Yes, HIDE acoustic pods are delivered and assembled throughout Europe. To receive a quote including installation and delivery costs to a given location, please contact us by email.
10Is it possible to rent a HIDE H1 acoustic pod?+
Yes, the H1 pod is available for rental. Contact us by email for a quote and rental terms.
